Board & Batten Panel
BB7-750P
A concealed-fastener architectural board and batten panel featuring a pronounced 2-inch raised batten for distinctive wall and facade applications.
Batten Height
3/4"
Coverage
10" / 12 1/4"
Batten Width
2"
Attachment
Concealed

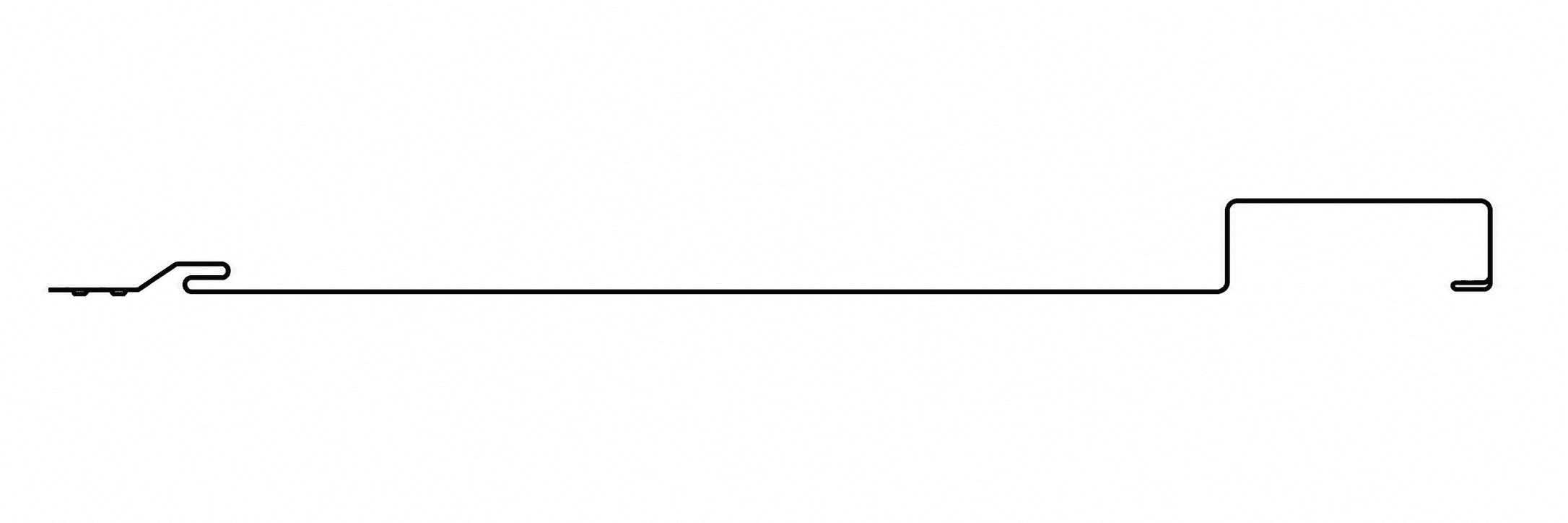

ABOUT THE PROFILE
Traditional board and batten character in architectural metal.
BB7-750P creates the strong vertical lines associated with traditional board and batten construction while using fabricated architectural metal and concealed attachment.
The profile features a 2-inch raised batten standing 3/4 inch from the panel face, creating pronounced shadow lines and architectural depth across the wall.
KAM offers the profile in 10-inch and 12 1/4-inch coverage options and can fabricate matching trim and project details alongside the panels.

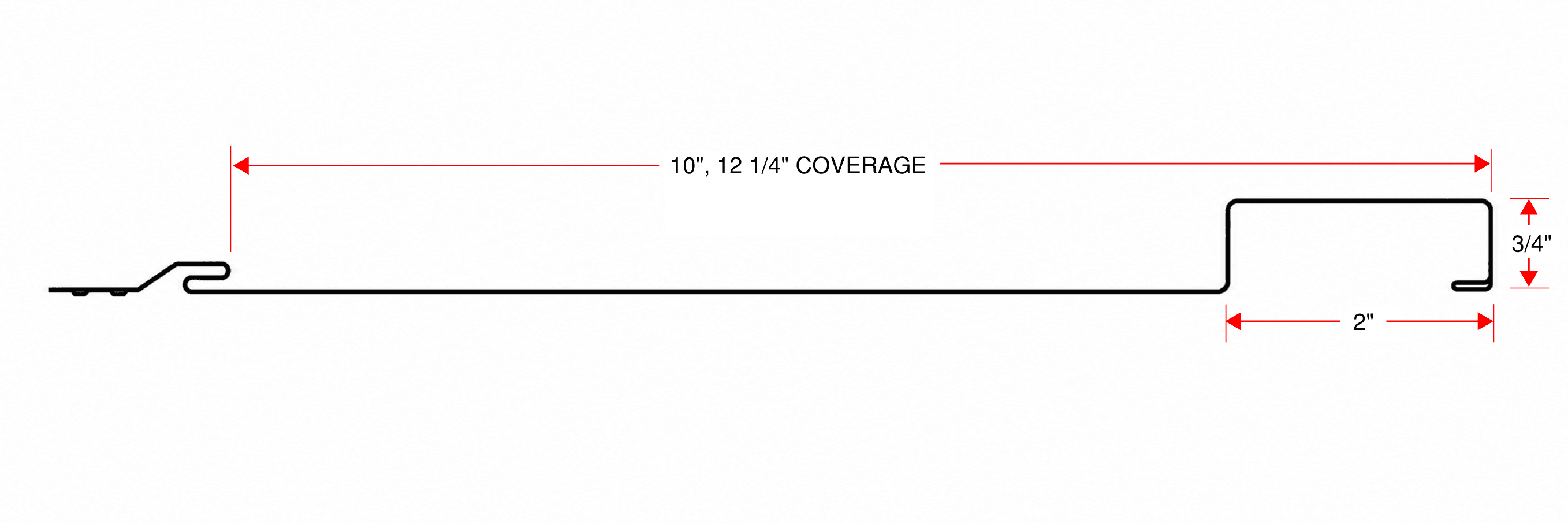

PROFILE DIMENSIONS
BB7-750P panel geometry.
Reference dimensions for KAM's board and batten panel profile.
AVAILABLE COVERAGE
Two coverage options for your project layout.
KAM fabricates BB7-750P in 10-inch and 12 1/4-inch coverage widths, giving installers and designers options when coordinating batten spacing and overall wall proportions.
COVERAGE
10"
COVERAGE
12 1/4"
RAISED BATTEN
2"
The pronounced 2-inch batten creates the defining vertical feature of the profile.
BATTEN HEIGHT
3/4"
The raised profile adds depth and shadow to architectural wall surfaces while maintaining concealed attachment.
MATERIAL OPTIONS
Architectural metal options for the project.
BB7-750P is available in KAM's standard architectural steel and aluminum material options.
COMMON APPLICATIONS
Designed to make the wall a feature.
CUSTOMER-SUPPLIED MATERIAL
Have the material already? Bring it to us.
KAM can fabricate compatible customer-supplied coil at a reduced fabrication rate. This is useful when project material has already been purchased or when matching material being used elsewhere on the building.
Contact KAM before delivering material so we can confirm machine, profile and material compatibility.
NEED MATCHING TRIM?
Keep the complete metal package together.
KAM can fabricate matching corners, base and head trim, jamb trim, flashing, coping, fascia, cleats and custom project details alongside your panels.
COLORS & FINISHES
Architectural finishes from trusted manufacturers.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals.
Color and material availability may vary. Contact KAM to confirm availability or request a physical color sample.
QUESTIONS ABOUT BB7-750P?
Talk with KAM about coverage, material, trim or project requirements.
