WALL & SOFFIT PANELS
Architectural profiles built for walls, soffits and everything between.
KAM fabricates wall and soffit panel systems in a range of flush, wave and board-and-batten profiles for commercial and architectural applications.
ARCHITECTURAL PANEL SYSTEMS
Multiple profiles. One fabrication partner.
From clean flush panels and soffits to wave profiles and board-and-batten systems, Kansas Architectural Metals provides panel fabrication for projects of all sizes.
Our panel lineup gives contractors, installers, architects and building owners multiple architectural options while keeping fabrication, matching trim and project coordination under one roof.
AVAILABLE PROFILES
Wall & soffit panel profiles.
Select a profile below for available widths, dimensions, materials and fabrication details.

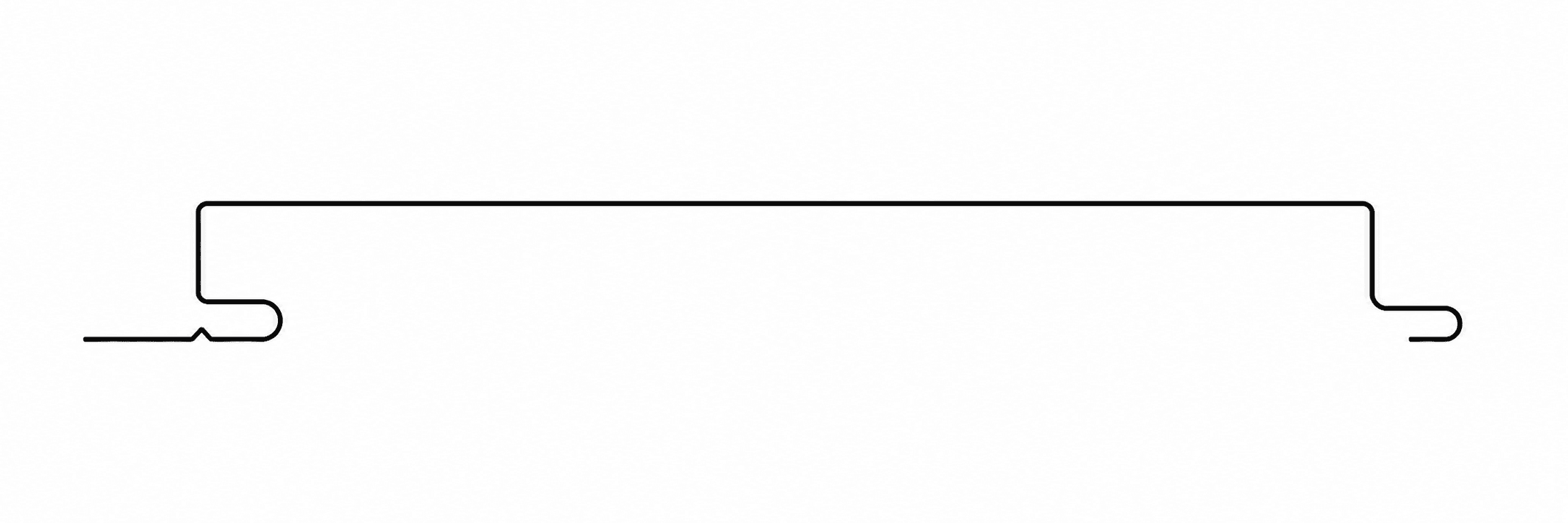

Flush Wall / Soffit Panel
FWQ100
Coverage
11"–20"
Profile
1"
A concealed-fastener flush panel with adjustable coverage for clean wall and soffit applications.
View Profile →
Flush Wall / Soffit Panel
FWQ150
Coverage
12"–16"
Profile
1 1/2"
A deeper concealed-fastener flush panel designed for architectural wall and soffit applications.
View Profile →
Board & Batten Panel
BB7-750P
Coverage
10", 12 1/4"
Profile
3/4"
A concealed-fastener board and batten profile featuring a pronounced 2-inch raised batten.
View Profile →
Wave Panel
WAV-8-1F
Coverage
8"
Profile
7/8"
A compact single-rib wave profile for walls, soffits and architectural accents.
View Profile →

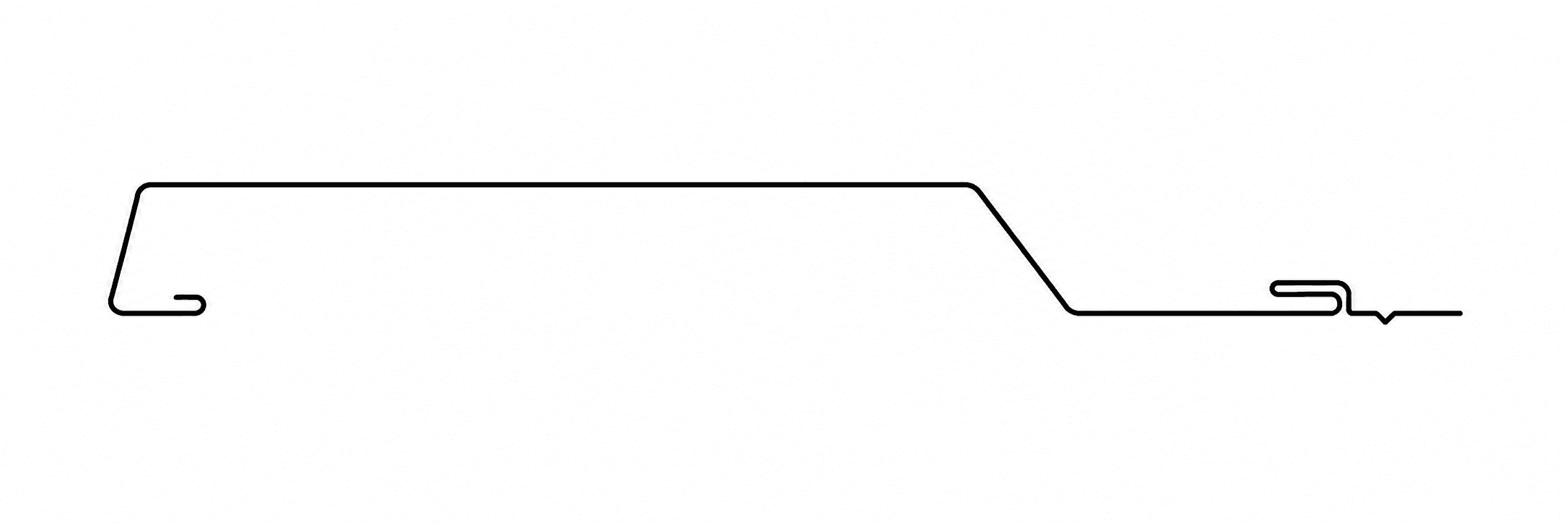

Wave Panel
WAV-12-1F
Coverage
12"
Profile
7/8"
A 12-inch single-rib wave profile offering a broad architectural face for wall and soffit applications.
View Profile →
Wave Panel
WAV-12-4F
Coverage
12"
Profile
7/8"
A 12-inch multi-rib wave panel for architectural wall, soffit and accent applications.
View Profile →

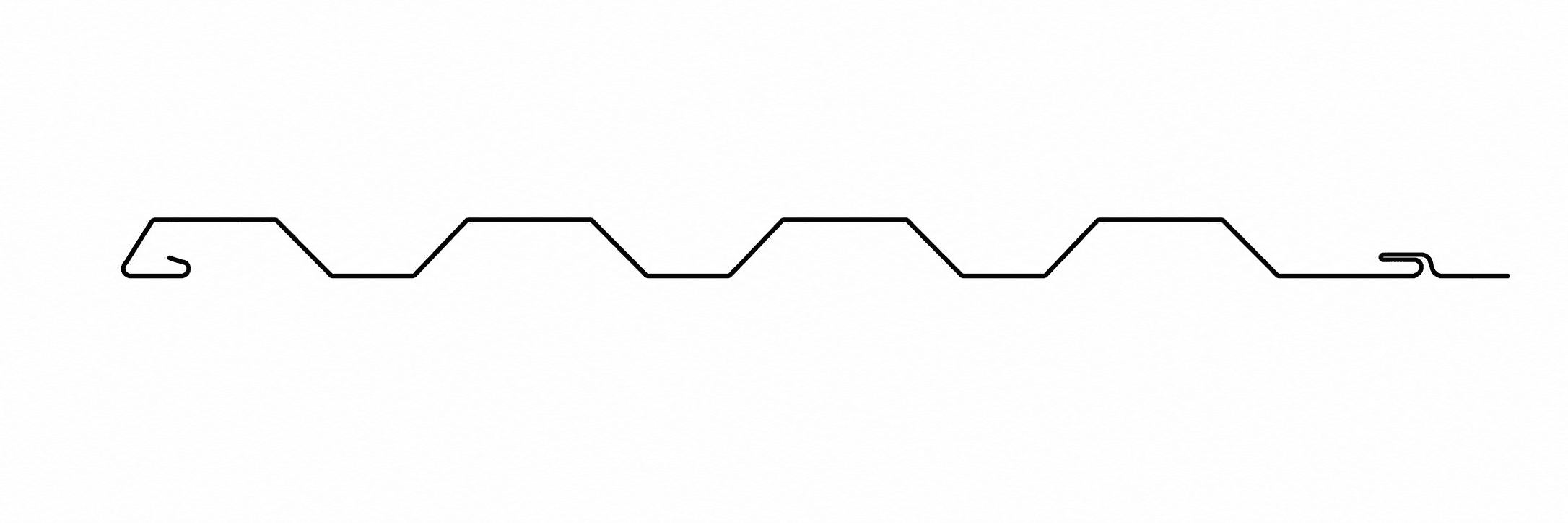

Wave Panel
WAV-16-4F
Coverage
16"
Profile
7/8"
A 16-inch four-rib wave profile with a pronounced architectural pattern for wall and soffit applications.
View Profile →
MATERIAL OPTIONS
Built from the material your project requires.
Wall and soffit profiles can be fabricated in multiple steel and aluminum options depending on the selected profile and project requirements.
COMMON APPLICATIONS
One panel family. A lot of possibilities.
These profiles can be used throughout commercial and architectural projects to create clean, durable metal surfaces and distinctive facade details.
CUSTOMER-SUPPLIED MATERIAL
Already have the material? We can fabricate it.
KAM can fabricate compatible customer-supplied coil or sheet material at a reduced fabrication rate. This can be especially useful when material has already been purchased for a project or when matching existing project material.
Contact KAM before delivering material so we can confirm profile, material and machine compatibility.
Discuss Your Project →FABRICATION FLEXIBILITY
Small quantities to commercial production runs.
Whether you need replacement panels, a small architectural feature or material for a larger commercial project, KAM can coordinate fabrication around the requirements of the job.
MATCHING TRIM & ACCESSORIES
Panels are only part of the package.
KAM can fabricate matching trim and accessories alongside your wall and soffit panels, helping keep material, color and project coordination together.
Matching trim can be fabricated through KAM's Wichita or Shawnee facilities depending on project requirements.
COLORS & FINISHES
Find the right finish for the project.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals. Color and material availability may vary by profile and project.
Contact KAM to confirm current availability or request a physical color sample before final material selection.
READY TO ORDER?
Give us the project details. We'll help with the metal.
When requesting pricing or submitting an order, include the panel profile, coverage width, lengths and quantities, material and color, along with any matching trim or project-specific requirements.
