Wave Panel
WAV-8-1F
A compact 8-inch architectural wave panel featuring a single-rib profile for walls, soffits and distinctive architectural accents.
Profile Depth
7/8"
Coverage
8"
Profile Style
Single Rib
Application
Wall / Soffit
ABOUT THE PROFILE
A compact wave profile with architectural depth.

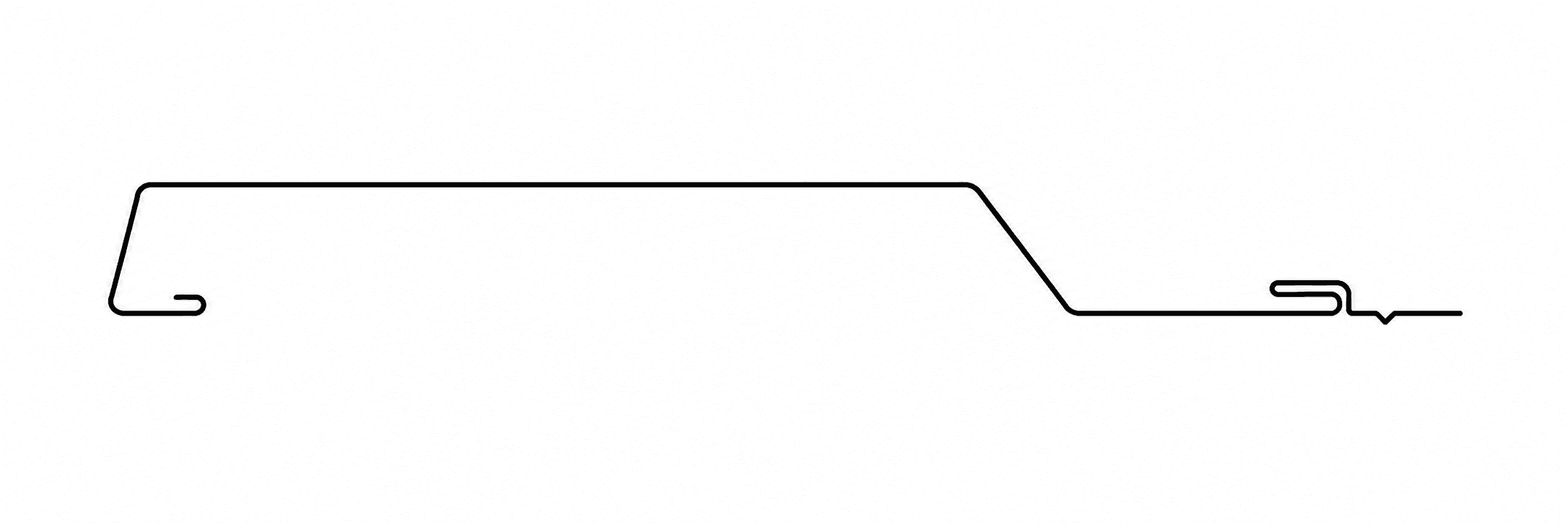

WAV-8-1F is an architectural wave panel with 8-inch coverage and a 7/8-inch profile depth. Its single-rib configuration creates a repeating dimensional pattern across wall and soffit surfaces.
The compact 8-inch coverage makes the profile well suited for areas where a tighter repeating pattern is desired, including exterior walls, soffits, canopies and architectural accent areas.
KAM can fabricate the WAV-8-1F alongside matching trim and project-specific sheet metal components to help keep the complete architectural metal package coordinated.

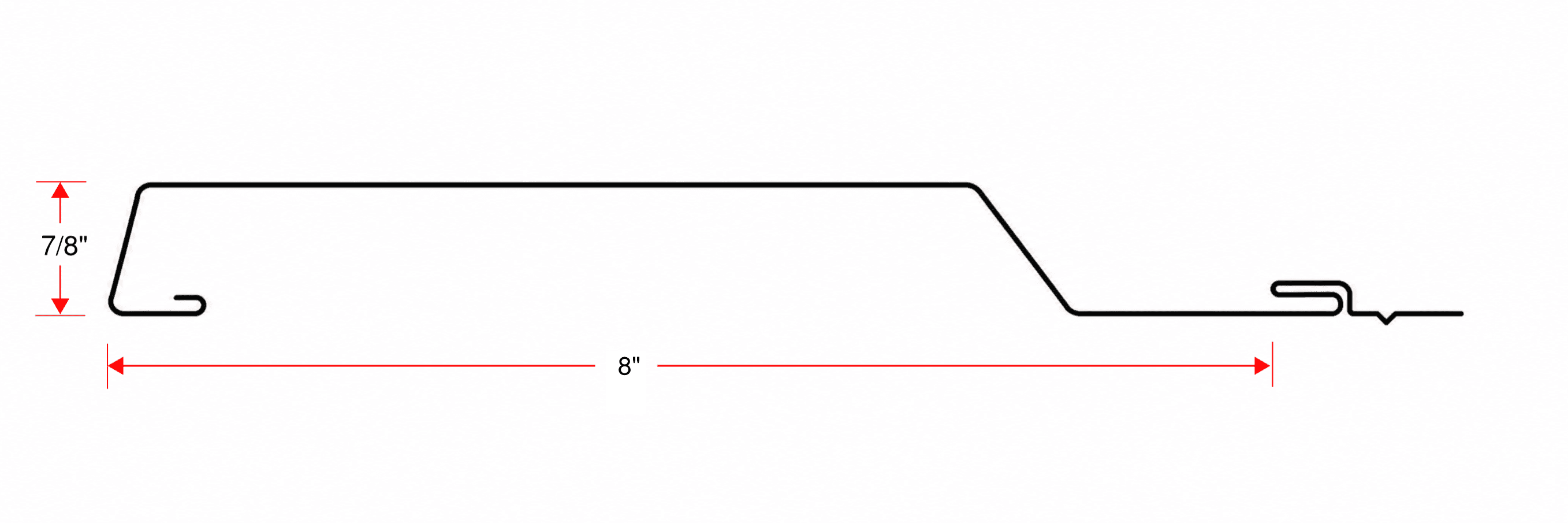

PROFILE DIMENSIONS
WAV-8-1F panel geometry.
Reference dimensions for KAM's 8-inch single-rib wave panel profile.
PROFILE SIZE
Compact coverage. Pronounced wave geometry.
WAV-8-1F provides 8 inches of panel coverage with a 7/8-inch profile depth, creating a compact repeating wave pattern for architectural wall and soffit applications.
COVERAGE
8"
PROFILE DEPTH
7/8"
SINGLE-RIB PROFILE
8"
The 8-inch coverage creates a tighter repeating rhythm across architectural wall and soffit surfaces.
PROFILE DEPTH
7/8"
The wave geometry projects 7/8 inch from the panel plane, creating dimensional shadow lines across the finished surface.
MATERIAL OPTIONS
Architectural metal options for the project.
WAV-8-1F is available in KAM's standard architectural steel and aluminum material options.
COMMON APPLICATIONS
A dimensional profile for architectural surfaces.
CUSTOMER-SUPPLIED MATERIAL
Have the material already? Bring it to us.
KAM can fabricate compatible customer-supplied coil at a reduced fabrication rate. This is useful when project material has already been purchased or when matching material being used elsewhere on the building.
Contact KAM before delivering material so we can confirm machine, profile and material compatibility.
NEED MATCHING TRIM?
Keep the complete metal package together.
KAM can fabricate matching corners, base and head trim, jamb trim, flashing, coping, fascia, cleats and custom project details alongside your panels.
COLORS & FINISHES
Architectural finishes from trusted manufacturers.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals.
Color and material availability may vary. Contact KAM to confirm availability or request a physical color sample.
QUESTIONS ABOUT WAV-8-1F?
Talk with KAM about coverage, material, trim or project requirements.
