Wave Panel
WAV-12-1F
A 12-inch architectural wave panel featuring a single-rib profile for walls, soffits and distinctive architectural accents.
Profile Depth
7/8"
Coverage
12"
Profile Style
Single Rib
Application
Wall / Soffit
ABOUT THE PROFILE
A broad single-rib wave profile for architectural surfaces.
WAV-12-1F is an architectural wave panel with 12-inch coverage and a 7/8-inch profile depth. Its single-rib configuration creates a broad repeating pattern across wall and soffit surfaces.
Compared with the tighter 8-inch WAV-8-1F profile, the 12-inch coverage creates wider spacing between repeating profile features while maintaining the same 7/8-inch depth.
KAM can fabricate the WAV-12-1F alongside matching trim and project-specific sheet metal components to help keep the complete architectural metal package coordinated.

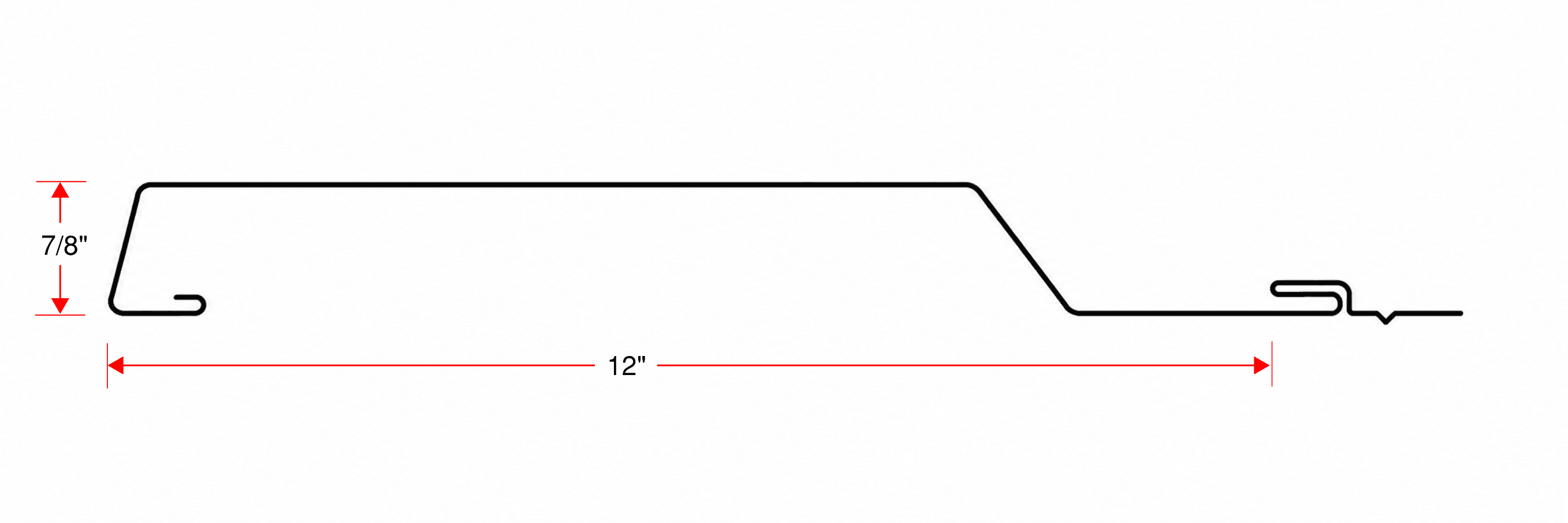

PROFILE DIMENSIONS
WAV-12-1F panel geometry.
Reference dimensions for KAM's 12-inch single-rib wave panel profile.
PROFILE SIZE
Wider coverage with dimensional wave geometry.
WAV-12-1F provides 12 inches of panel coverage with a 7/8-inch profile depth, creating a broad repeating wave pattern for architectural wall and soffit applications.
COVERAGE
12"
PROFILE DEPTH
7/8"
SINGLE-RIB PROFILE
12"
The 12-inch coverage creates a broader repeating rhythm across architectural wall and soffit surfaces.
PROFILE DEPTH
7/8"
The wave geometry projects 7/8 inch from the panel plane, creating dimensional shadow lines across the finished surface.
MATERIAL OPTIONS
Architectural metal options for the project.
WAV-12-1F is available in KAM's standard architectural steel and aluminum material options.
COMMON APPLICATIONS
A dimensional profile for architectural surfaces.
CUSTOMER-SUPPLIED MATERIAL
Have the material already? Bring it to us.
KAM can fabricate compatible customer-supplied coil at a reduced fabrication rate. This is useful when project material has already been purchased or when matching material being used elsewhere on the building.
Contact KAM before delivering material so we can confirm machine, profile and material compatibility.
NEED MATCHING TRIM?
Keep the complete metal package together.
KAM can fabricate matching corners, base and head trim, jamb trim, flashing, coping, fascia, cleats and custom project details alongside your panels.
COLORS & FINISHES
Architectural finishes from trusted manufacturers.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals.
Color and material availability may vary. Contact KAM to confirm availability or request a physical color sample.
QUESTIONS ABOUT WAV-12-1F?
Talk with KAM about coverage, material, trim or project requirements.
