Flush Wall / Soffit Panel
FWQ150
A deeper concealed-fastener flush panel for architectural wall, soffit and accent applications.
Profile Depth
1 1/2"
Coverage
12"–16"
Attachment
Concealed
Application
Wall / Soffit

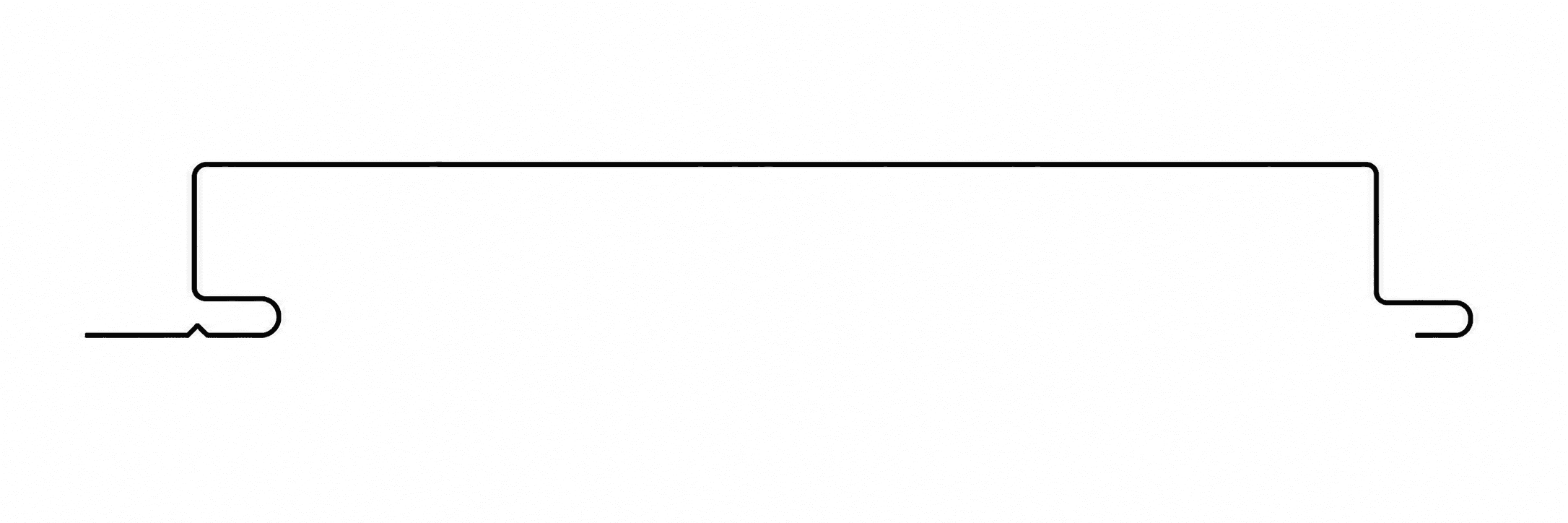

ABOUT THE PROFILE
A deeper flush panel with clean architectural lines.
FWQ150 is a concealed-fastener architectural panel designed for wall and soffit applications where a clean panel face and deeper profile are desired.
Available in coverage widths from 12 to 16 inches, FWQ150 provides flexibility for coordinating panel layout, joint spacing and architectural proportions.
KAM can fabricate FWQ150 panels alongside matching trim and accessories to help keep the complete architectural metal package coordinated.

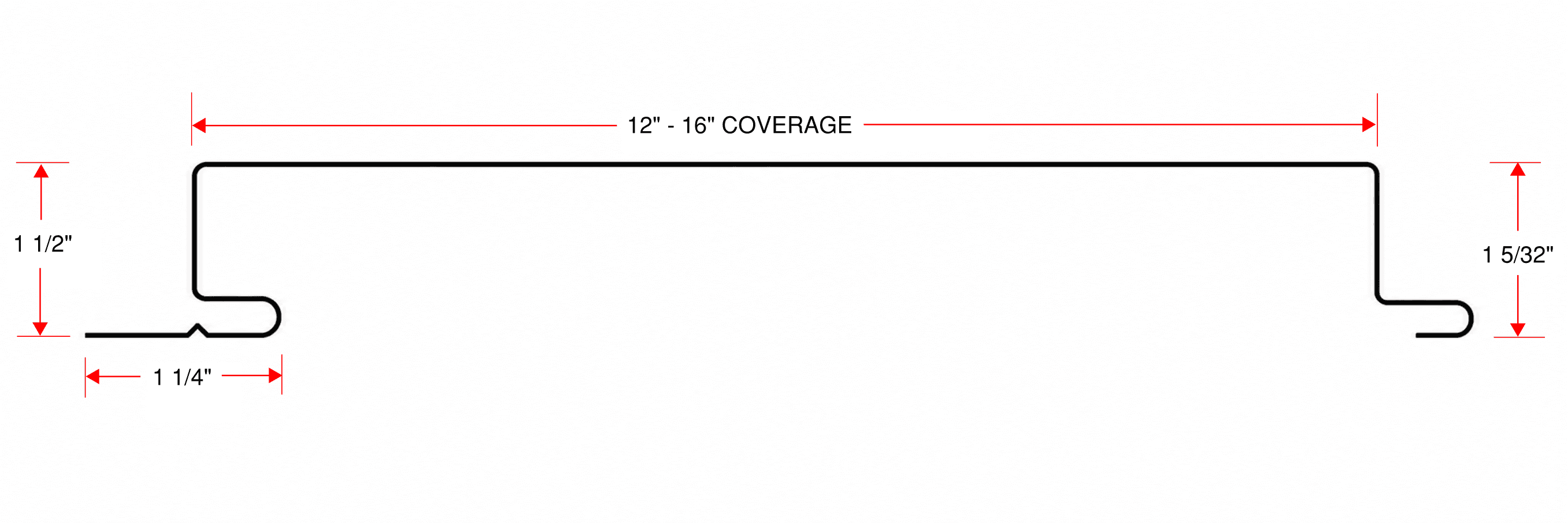

PROFILE DIMENSIONS
FWQ150 panel geometry.
Reference dimensions for KAM's FWQ150 wall and soffit panel profile.
AVAILABLE COVERAGE
Adjustable from 12 to 16 inches.
FWQ150 can be fabricated in coverage widths from 12 through 16 inches, allowing the panel layout to be coordinated around the requirements and appearance of the project.
COVERAGE RANGE
12"–16"
Contact KAM when selecting panel width so fabrication can be coordinated with your project layout and material requirements.
MATERIAL OPTIONS
Fabricated for the material your project requires.
FWQ150 is available in KAM's standard architectural steel and aluminum material options.
COMMON APPLICATIONS
Built for architectural versatility.
CUSTOMER-SUPPLIED MATERIAL
Have the material already? Bring it to us.
KAM can fabricate compatible customer-supplied coil at a reduced fabrication rate. This is useful when project material has already been purchased or when matching material being used elsewhere on the building.
Contact KAM before delivering material so we can confirm machine, profile and material compatibility.
NEED MATCHING TRIM?
Keep the complete metal package together.
KAM can fabricate matching corners, base and head trim, jamb trim, flashing, coping, fascia, cleats and custom project details alongside your panels.
COLORS & FINISHES
Architectural finishes from trusted manufacturers.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals.
Color and material availability may vary. Contact KAM to confirm availability or request a physical color sample.
QUESTIONS ABOUT FWQ150?
Talk with KAM about profile, material, width or project requirements.
