Wave Panel
WAV-12-4F
A 12-inch architectural wave panel featuring a multi-rib profile for walls, soffits and distinctive architectural accents.
Profile Depth
7/8"
Coverage
12"
Profile Style
Multi-Rib
Application
Wall / Soffit
ABOUT THE PROFILE
More profile features across a compact 12-inch face.

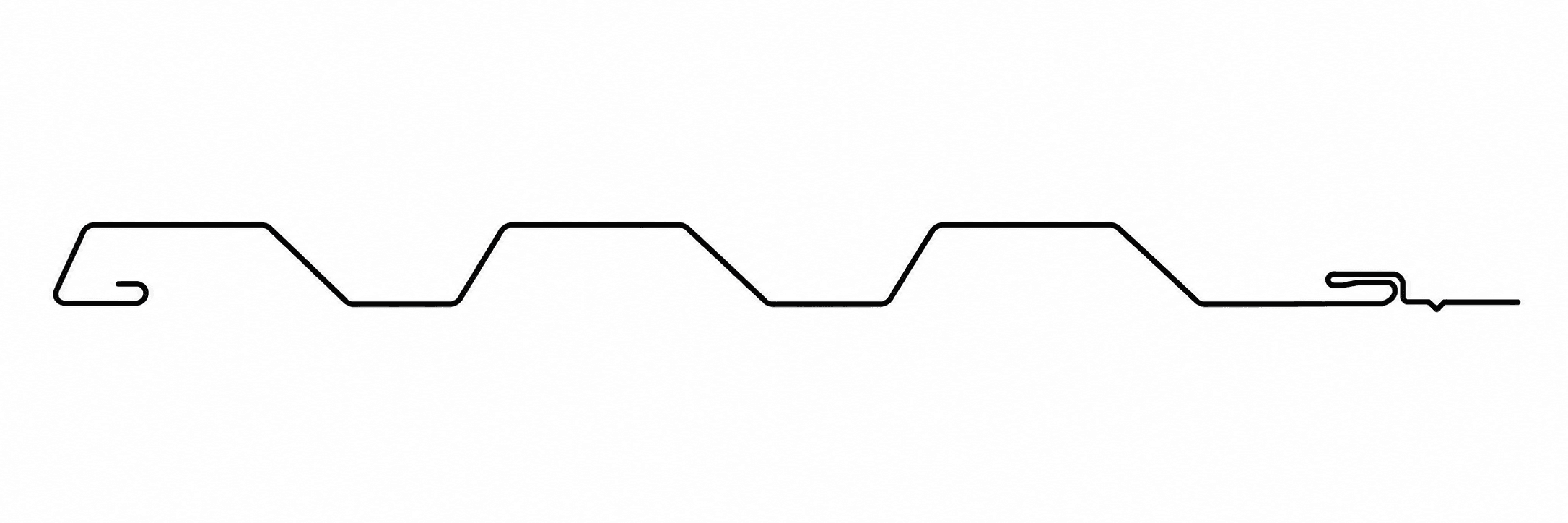

WAV-12-4F is an architectural wave panel with 12-inch coverage and a 7/8-inch profile depth. Its multi-rib configuration creates a more frequent repeating pattern across wall and soffit surfaces.
The combination of 12-inch coverage and multiple profile features gives WAV-12-4F a different visual rhythm than KAM's single-rib wave profiles, providing another option for architectural elevations and accent areas.
KAM can fabricate the WAV-12-4F alongside matching trim and project-specific sheet metal components to help keep the complete architectural metal package coordinated.

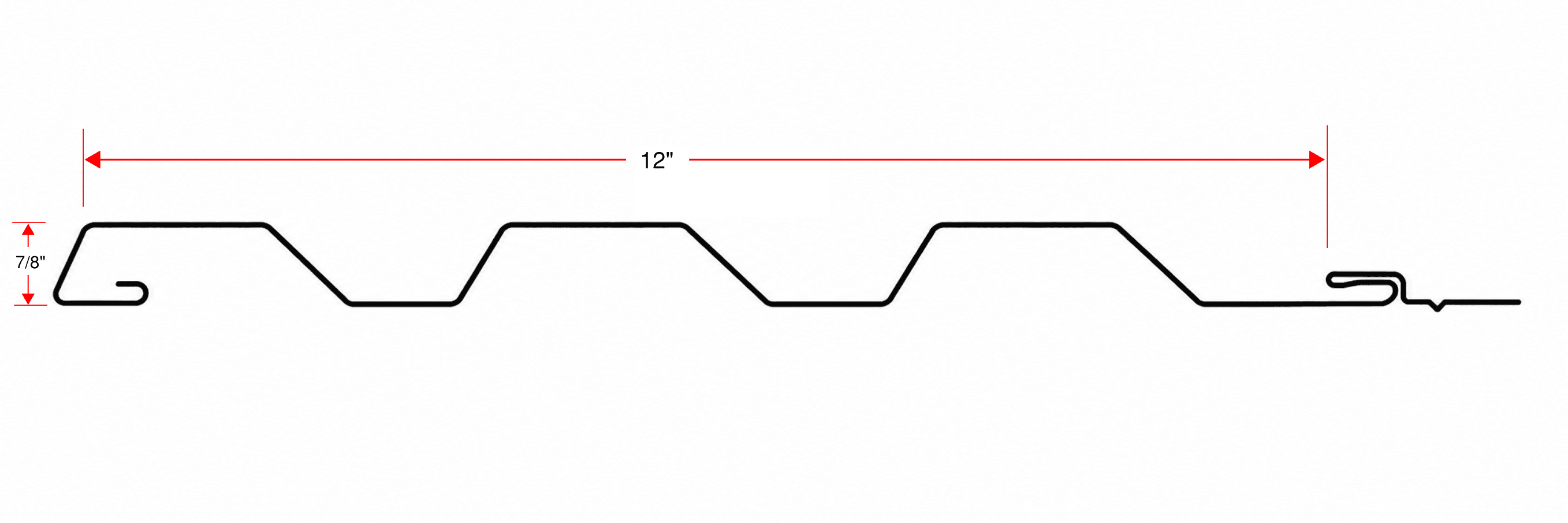

PROFILE DIMENSIONS
WAV-12-4F panel geometry.
Reference dimensions for KAM's 12-inch multi-rib wave panel profile.
PROFILE SIZE
Twelve-inch coverage with a multi-rib pattern.
WAV-12-4F provides 12 inches of panel coverage with a 7/8-inch profile depth, combining compact coverage with a repeating multi-rib wave pattern for architectural wall and soffit applications.
COVERAGE
12"
PROFILE DEPTH
7/8"
MULTI-RIB PROFILE
12"
Multiple profile features repeat across the 12-inch coverage, creating a more frequent architectural pattern across the finished surface.
PROFILE DEPTH
7/8"
The wave geometry projects 7/8 inch from the panel plane, creating dimensional shadow lines across the finished surface.
MATERIAL OPTIONS
Architectural metal options for the project.
WAV-12-4F is available in KAM's standard architectural steel and aluminum material options.
COMMON APPLICATIONS
A repeating profile for architectural surfaces.
CUSTOMER-SUPPLIED MATERIAL
Have the material already? Bring it to us.
KAM can fabricate compatible customer-supplied coil at a reduced fabrication rate. This is useful when project material has already been purchased or when matching material being used elsewhere on the building.
Contact KAM before delivering material so we can confirm machine, profile and material compatibility.
NEED MATCHING TRIM?
Keep the complete metal package together.
KAM can fabricate matching corners, base and head trim, jamb trim, flashing, coping, fascia, cleats and custom project details alongside your panels.
COLORS & FINISHES
Architectural finishes from trusted manufacturers.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals.
Color and material availability may vary. Contact KAM to confirm availability or request a physical color sample.
QUESTIONS ABOUT WAV-12-4F?
Talk with KAM about coverage, material, trim or project requirements.
