Flush Wall / Soffit Panel
FWQ100
A concealed-fastener flush panel with adjustable coverage for architectural wall, soffit and accent applications.
Profile Depth
1"
Coverage
11"–20"
Attachment
Concealed
Application
Wall / Soffit
ABOUT THE PROFILE
Clean lines with flexible coverage.
FWQ100 is a concealed-fastener architectural panel designed for wall and soffit applications where a clean, uninterrupted face is desired.
With coverage options ranging from 11 to 20 inches, the profile gives contractors and designers flexibility when coordinating panel layout, joint spacing and architectural proportions.
KAM can fabricate FWQ100 panels alongside matching trim and accessories to help keep the complete metal package coordinated.

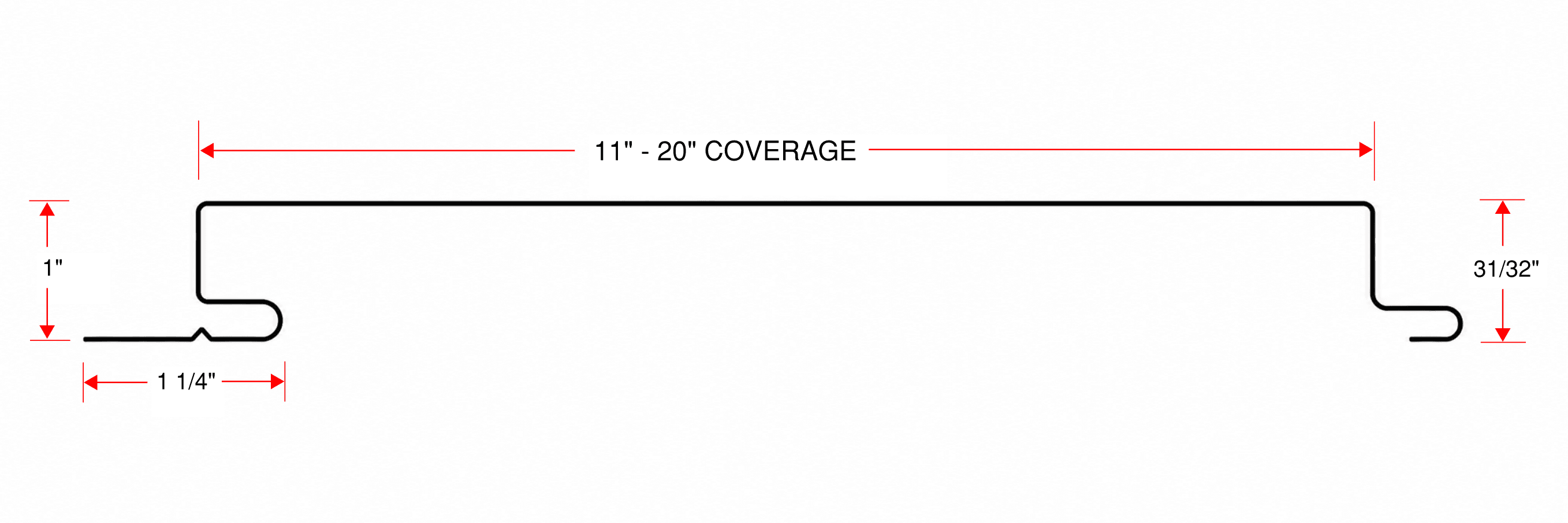

PROFILE DIMENSIONS
FWQ100 panel geometry.
Reference dimensions for KAM's FWQ100 wall and soffit panel profile.
AVAILABLE COVERAGE
Adjustable from 11 to 20 inches.
FWQ100 can be fabricated in coverage widths from 11 through 20 inches, allowing the panel layout to be coordinated around the requirements and appearance of the project.
COVERAGE RANGE
11"–20"
Contact KAM when selecting panel width so fabrication can be coordinated with your project layout and material requirements.
MATERIAL OPTIONS
Fabricated for the material your project requires.
FWQ100 is available in KAM's standard architectural steel and aluminum material options.
COMMON APPLICATIONS
Built for architectural versatility.
CUSTOMER-SUPPLIED MATERIAL
Have the material already? Bring it to us.
KAM can fabricate compatible customer-supplied coil at a reduced fabrication rate. This is useful when project material has already been purchased or when matching material being used elsewhere on the building.
Contact KAM before delivering material so we can confirm machine, profile and material compatibility.
NEED MATCHING TRIM?
Keep the complete metal package together.
KAM can fabricate matching corners, base and head trim, jamb trim, flashing, coping, fascia, cleats and custom project details alongside your panels.
COLORS & FINISHES
Architectural finishes from trusted manufacturers.
KAM works with architectural metal from leading manufacturers, including PAC-CLAD and Drexel Metals.
Color and material availability may vary. Contact KAM to confirm availability or request a physical color sample.
QUESTIONS ABOUT FWQ100?
Talk with KAM about profile, material, width or project requirements.
